Samsonas 6 Speed Sequential Gearbox with Bellhousing adaptor plate, shifter mechanism & sensors to suit Toyota GT86, Scion FR-S & Subaru BRZ.
This is the gearbox we use in our Fensport GT86R.

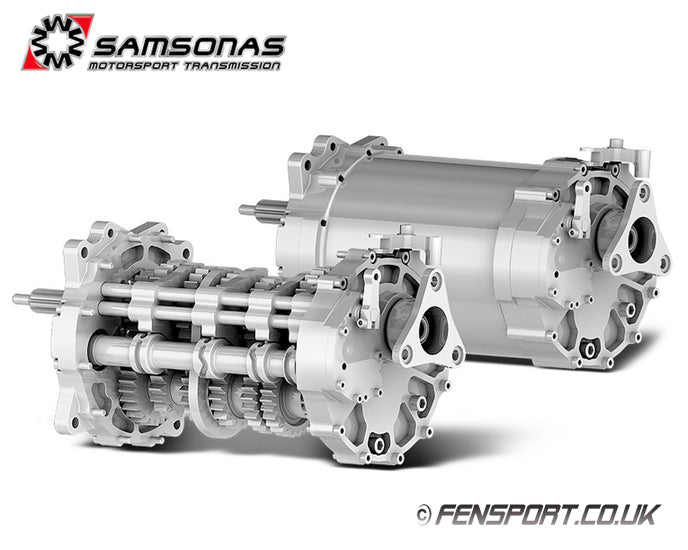

RWD sequential gearbox
• 6 speed (plus reverse) full sequential gearbox
• solid aluminium casing

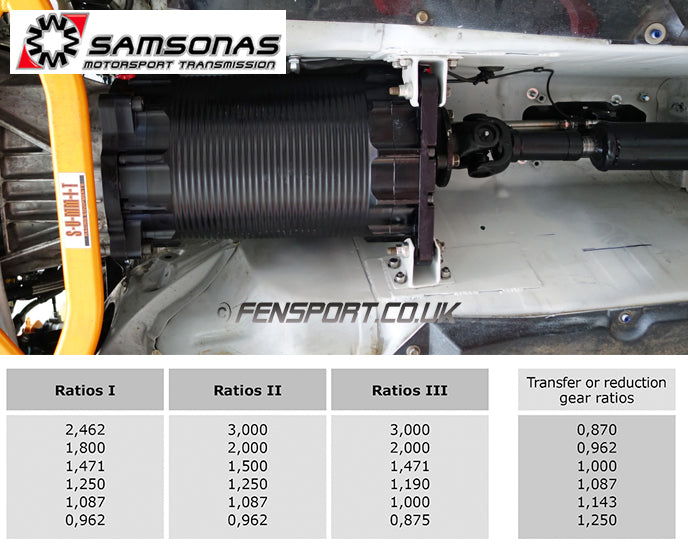

• Choice of ratios, transfer/ reduction gears (see pic 2)
• torque rating up to 1400 Nm, depending on options
• special steel X300 clutch shaft
• straight cut teeth, 5 dogs design for smooth high rpm shifting
• dry weight 38 kg;
• Barrel rotary potentiometer with gear position display
• Gear shift load cell

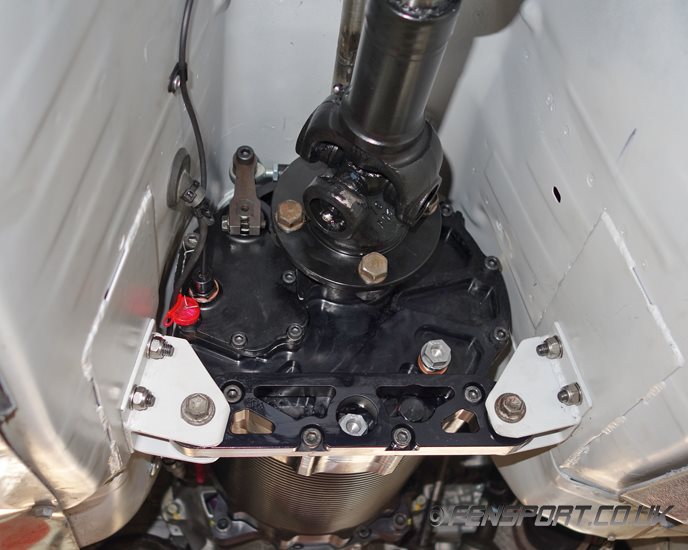

• FA20 Bellhousing adaptor plate
The Samsonas 6 speed sequential is a universal rwd fitment. This particular box comes with the Subaru input shaft and bellhousing adapter plate for a relatively easy installation.
Note 1: The gearbox tunnel will need modification to remove the original gearbox mounting along with some massaging of the upper tunnel for gear linkage clearance.
Note 2: Gearbox rear mounting will need fabricating.
Note 3: A propshaft will need to be manufactired, we can help with this if required on an exchange basis, price is approx £375 + carriage and vat.
Note 4: We can carry out installation if required.
Please note this a special order item and we will require your choice of ratios and drop gears as well as full payment at the time of order. Shipping costs and lead times vary so please enquire.
- Special order
- Subaru BRZ 2012 On
- Subaru BRZ 2017 On BRZ
- Toyota GT86 2012 to 2016
- Toyota GT86 2017 On
