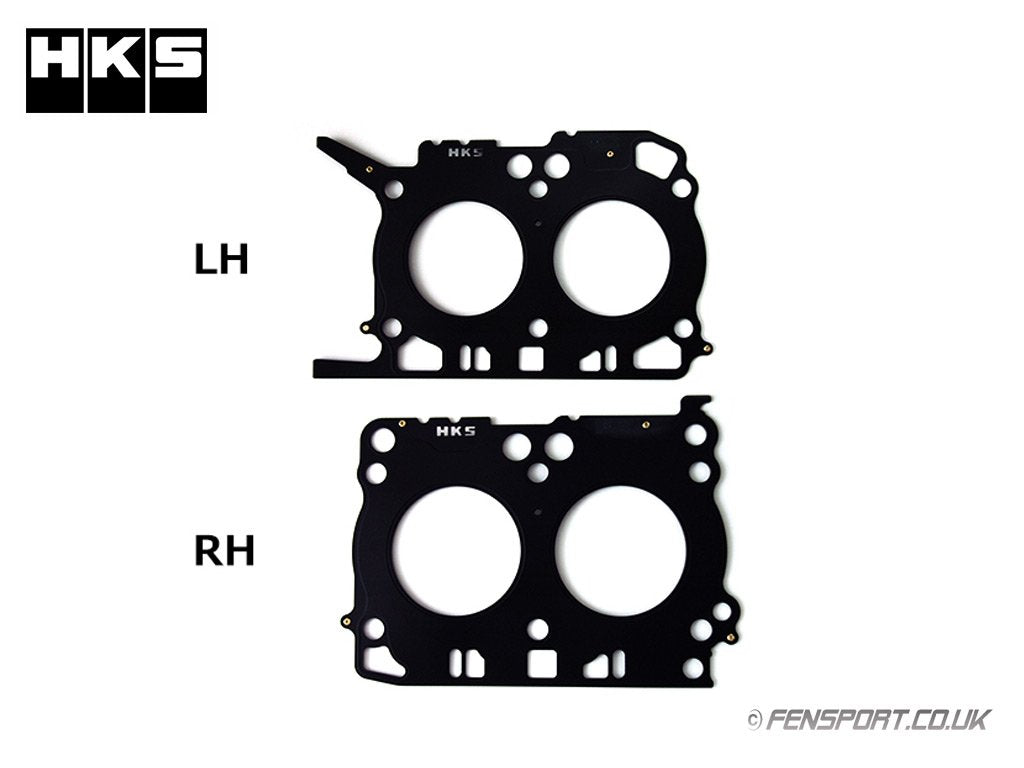

HKS stopper type metal headgaskets for GT86 & BRZ
Opposed bead stopper type metal gasket for the FA20 engine provides higher bore sealing durability than a stock gasket.
- Stopper structure of the bore seal is separated type so it prevents leakage even under high gas-pressure at high engine output.
- Special coating was applied on the head side and cylinder side to improve sealing performance when tightening the bolts.
- Combining with strengthened ARP head bolts for even higher seal strength.
Available in various thicknesses to suit a wide range of applications.

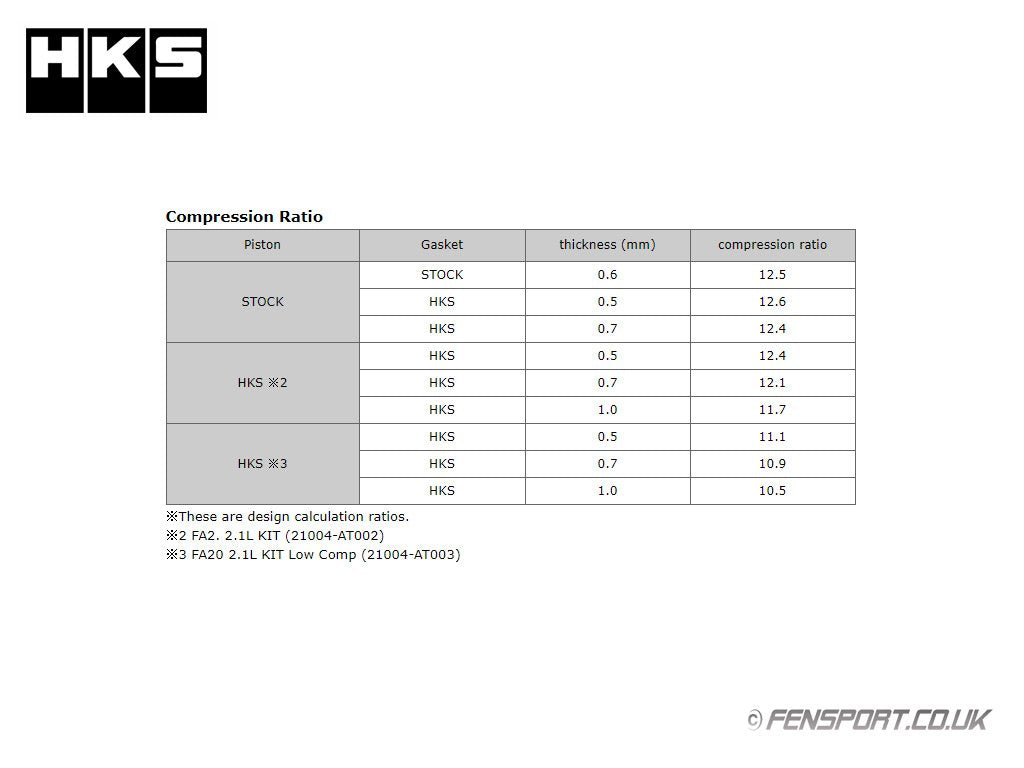

Check 2nd picture for the various calculated compression ratios.
- Subaru BRZ 2012 On
- Subaru BRZ 2017 On BRZ
- Toyota GT86 2012 to 2016
- Toyota GT86 2017 On
